Standard Style Stuffing Boxes
The WNS Lowery Standard Style Stuffing Boxes offer an economical solution to sealing off a rod lift well. The industry standard design has a proven dependability when operating at a 1500 psi working pressure. There are numerous combinations of bodies and packing to work in most applications. All units can be fitted with an Oil Reservoir Gland or HE-LUG to improve the performance of the unit and reduce costly maintenance. The DPSB can also be fitted with a Pollution Control Base to seal off the unit if the polished rod were to fail.
Features:
1500 PSI working pressure.
Industry standard design
Design allows up to 3° pumping unit misalignment
Optional Oil Reservoir Gland on all style stuffing boxes
DPSB enables maintenance to the primary packing while under pressure.
TBSB combines a Stuffing Box and Pumping Tee to eliminate a leak point.
All styles can be converted to an “Inverted” Style Stuffing Box

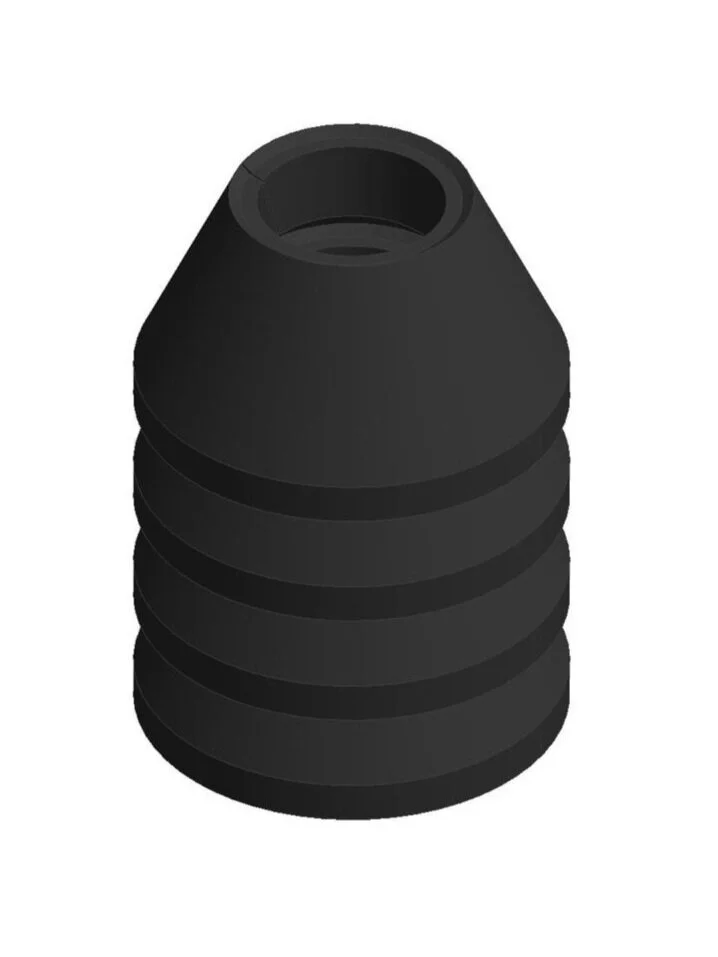

Standard Style Cone Packing
Cone Packing is the most important component within the Standard Style Stuffing Boxes. This packing is engineered to perform in ever-changing well conditions, ensuring a constant seal of a rod lift well. Cone Packing is available in all polished rod sizes from 1” through 1 3/4" sets. Each Cone packing set consists of 3 top cones and 1 bottom cone.
Available Materials:
Soft Buna
Hard Buna
HSN
Gold Flake
Teflon Filled
Hi-Temp
WN-H
